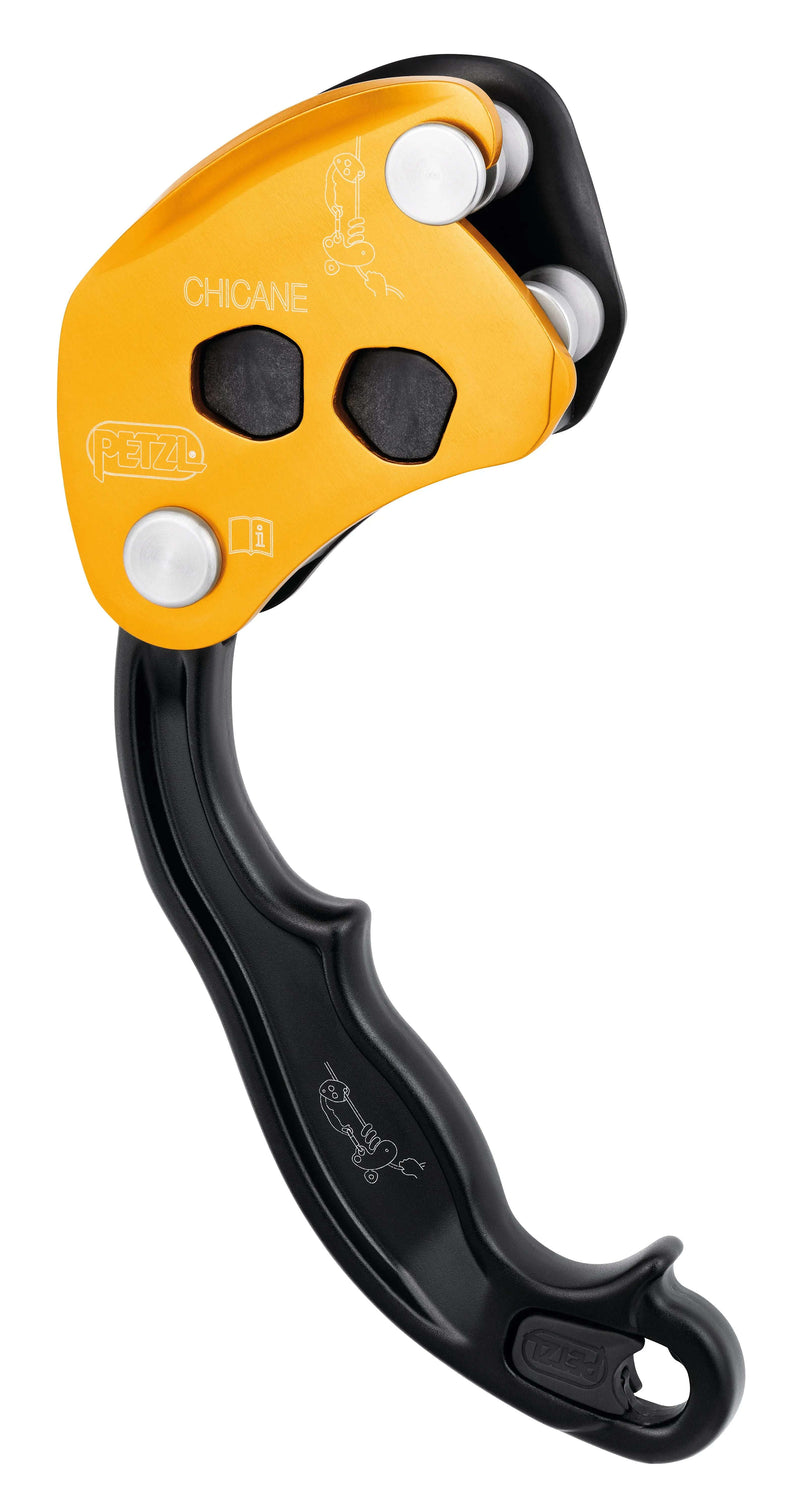

PETZL Chicane Auxiliary Braking Device for Zigzag on Single Ropes - Yellow

The PETZL Chicane Auxiliary Braking Device is designed for use with the ZIGZAG and ZIGZAG PLUS mechanical Prusiks, converting them into an ANSI Z133-compliant system for use with single ropes (SRS/SRT). This device provides added friction via two friction pins, offering controlled and smooth descents on a single line. Its ergonomic handle ensures an excellent grip, making it easier to manage the rope during ascents and descents. The openable side plate with triple-action unlocking allows for easy installation, while the H-shaped cross-section ensures smooth rope glide during ascents. The Chicane is built with high-quality materials, including alloy steel, aluminum, and nylon for durability.

Key Features:

• Converts ZIGZAG and ZIGZAG PLUS into an ANSI Z133-compliant system for single ropes
• Provides continuous additional braking action via two friction pins
• Ergonomic handle for excellent grip and ease of movement during ascents
• Openable side plate with triple-action unlocking for easy installation
• Works with an Am'D or OK carabiner for a unified and smooth system during ascents
• H-shaped cross-section ensures smooth rope glide during ascents

Specifications:

• Material: Alloy Steel, Aluminum, Nylon
• Weight: 255g
• Color: Yellow
• Size: UNI (Universal)
• Package Dimensions: 7.48 x 3.74 x 1.57 inches
• Maximum Working Load: 2.5 kN
• Certifications: ANSI Z133
• Warranty: 3 years

Ensure safe and efficient rope management with the PETZL Chicane Auxiliary Braking Device. Order now for enhanced performance and control on single rope systems!

Manufacturer Part Number: D022CA00

Certifications: CE, UKCA (EN 1891 Type A compatible, ANSI Z133 compliant)
